TESTING MACHINES
We are able to design and manufacture testing machines depending on customer’s theme, environment and budget.
Following machines are able to be produced as testing machines: laminating machines, calendering machines, embossing machines, pressing machines and coating machines. In addition, there are standard specification machines which are in a short delivery period.
CALENDERING AND EMBOSSING APPLICATIONS

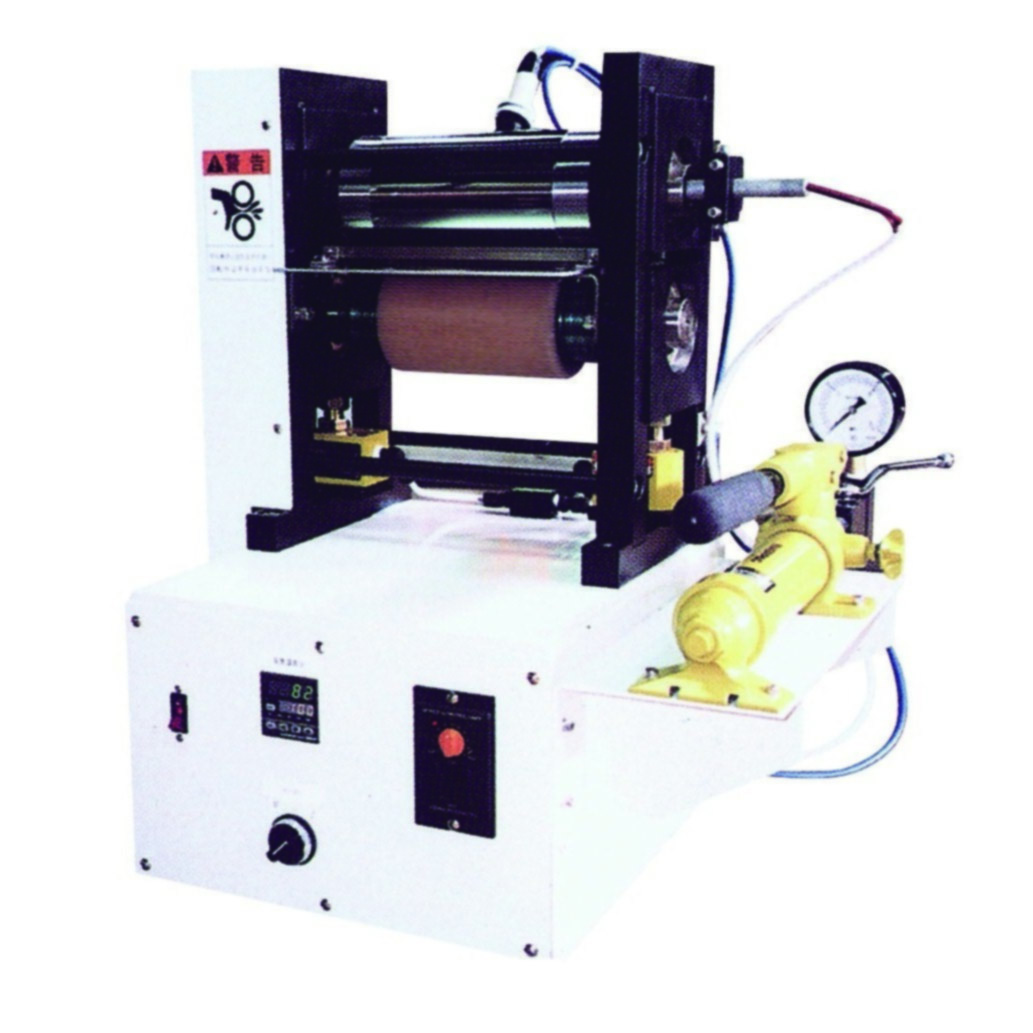

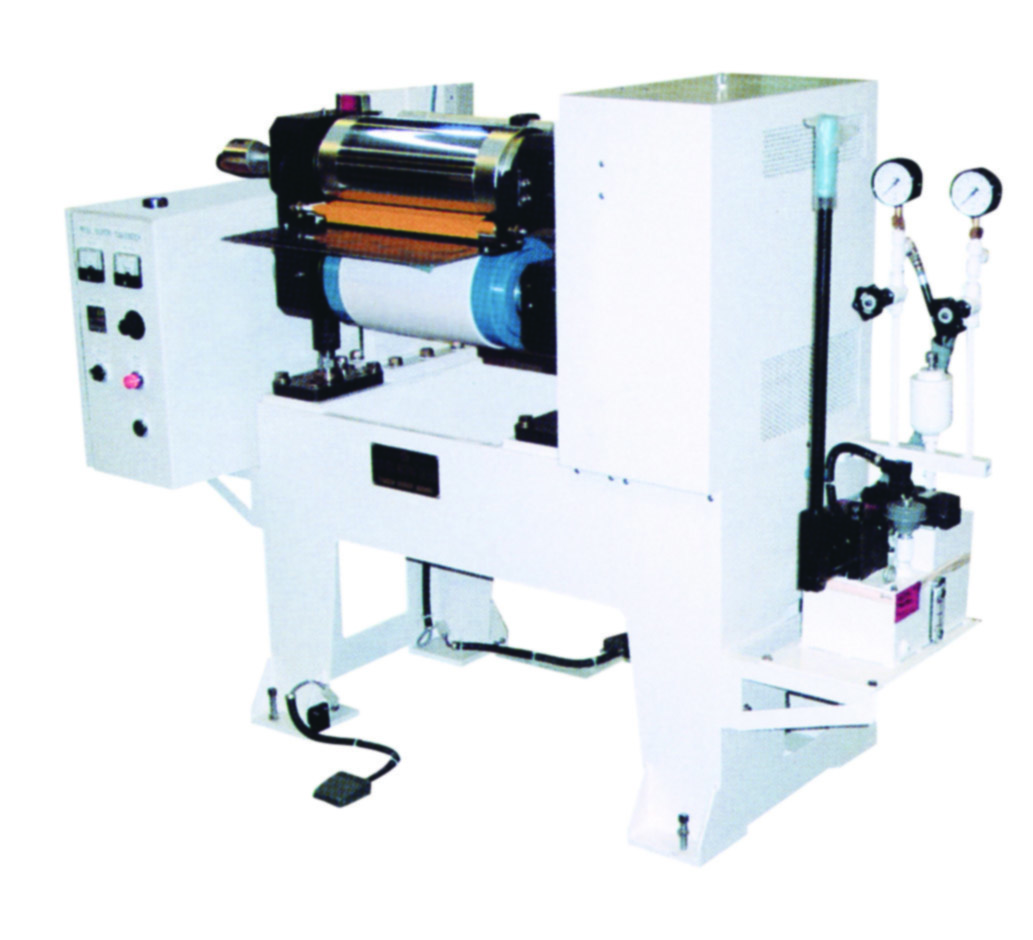

TABLETOP MODEL CALENDER
| Roller width | 150mm |
| Feed speed | 1-4m/min |
| Total pressure | 15kN |

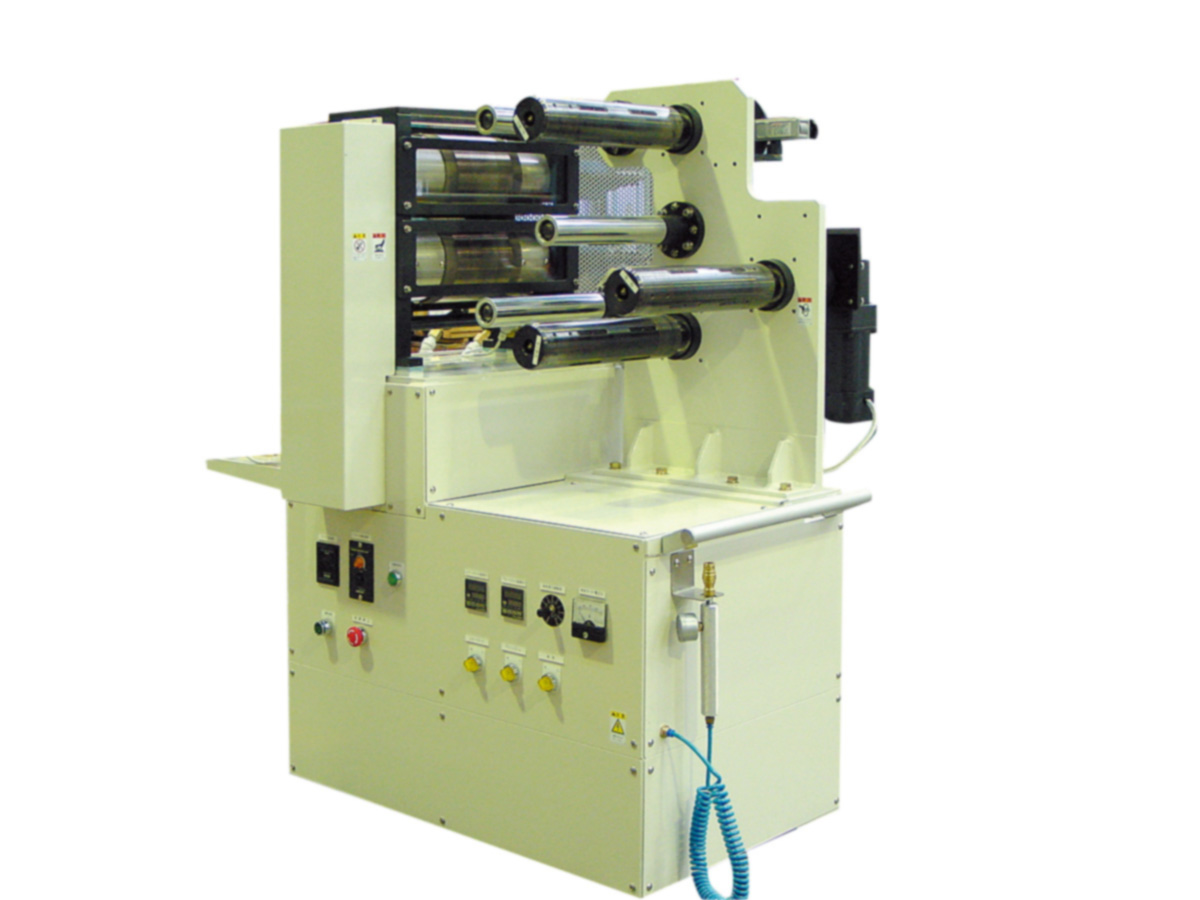

MINI SUPER CALENDER
| Roller width | 300mm |
| Feed speed | 5-20m/min |
| Total pressure | 60kN |
HEAT LAMINATING APPLICATIONS

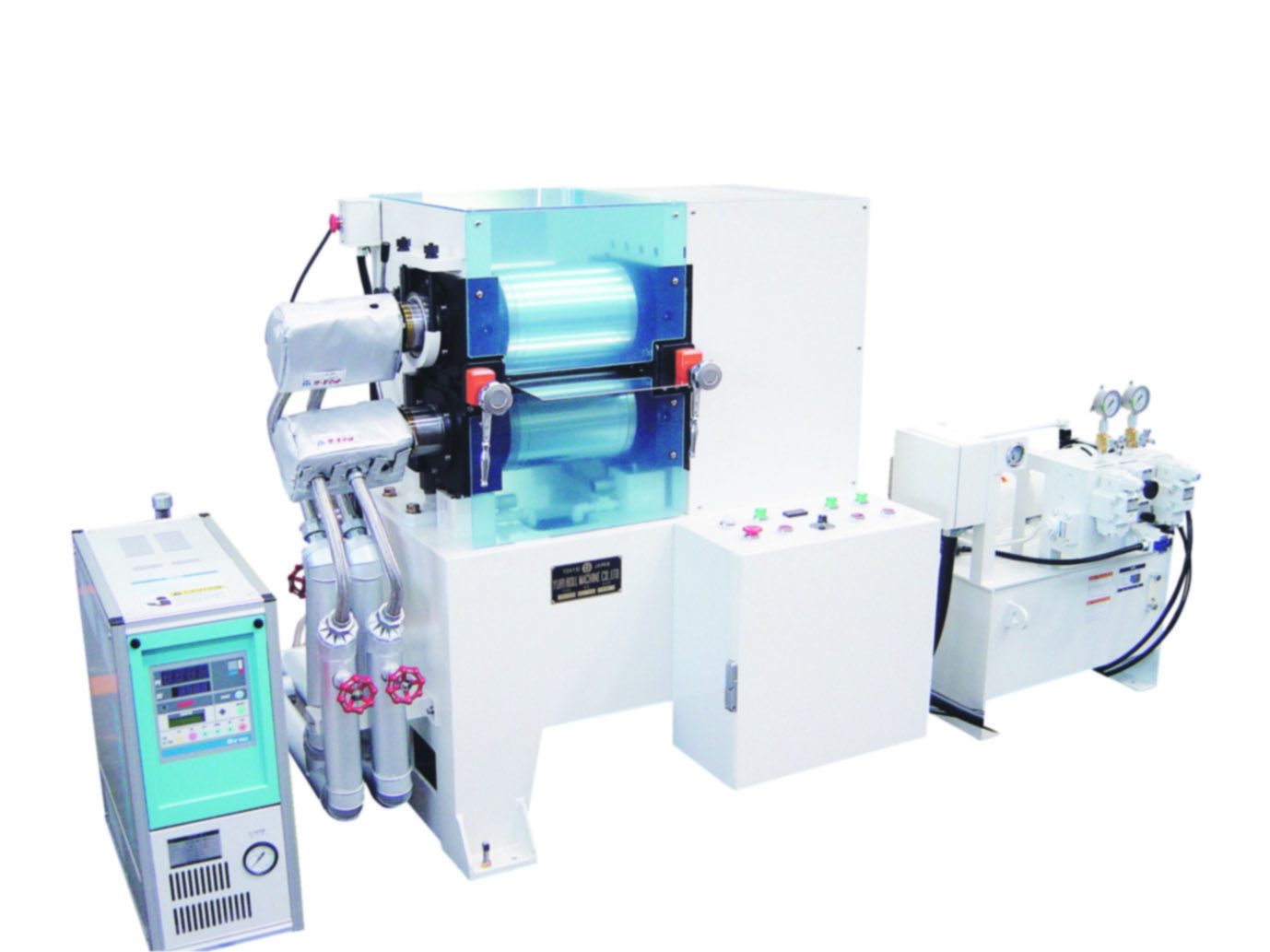

THERMAL CALENDAR(MINI)
| Roll | 300mm |
| Feed speed | 20m/min |
| Line pressure | 200kN/m |
| Heating Temperature | 260℃（R≦2℃） |

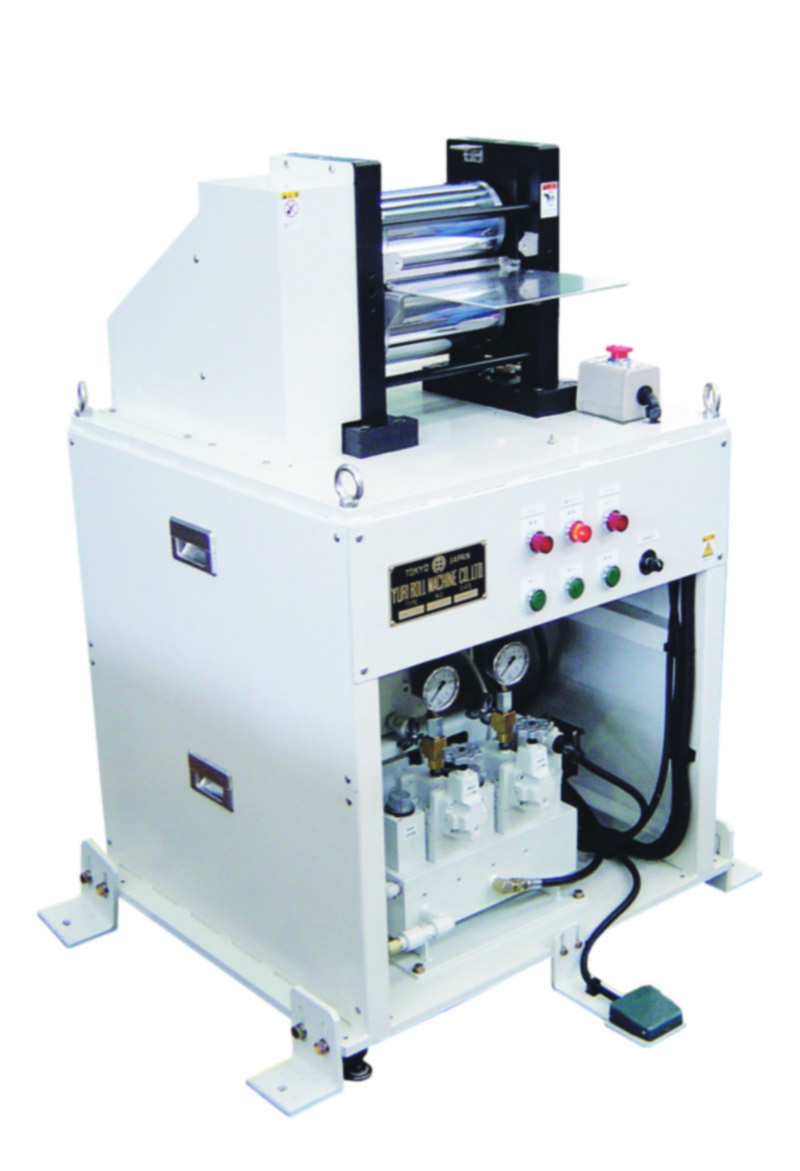

THERMAL CALENDAR(TABLETOP)
| Roll | 130mm |
| Feed speed | 5m/min |
| Line pressure | 120kN/m |
| Heating Temperature | 400℃ |
PRESS AND CALENDERING APPLICATIONS

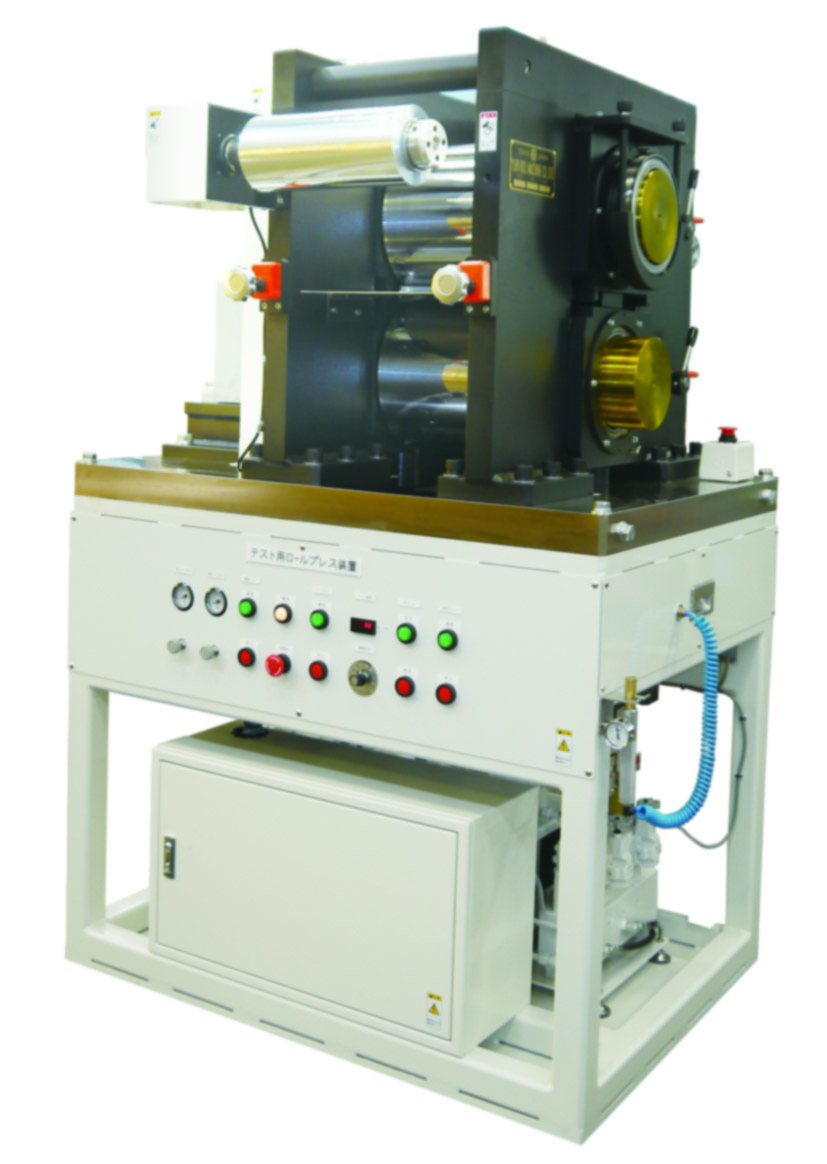

40kN TYPE
| Roller size | D150×W150mm |
| Feed speed | 1-4m/min |
| Total pressure | 40kN |
100kN TYPE
| Roller size | D250×W200mm |
| Feed speed | 1-4m/min |
| Total pressure | 100kN |

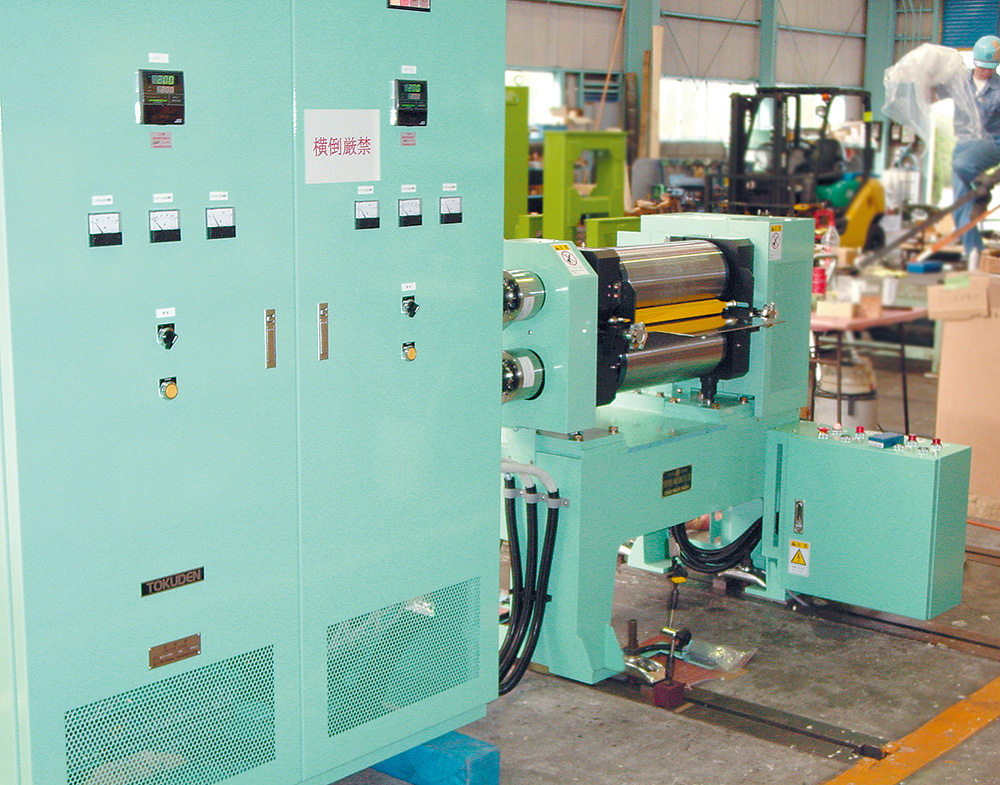

300kN TYPE
| Roller size | D300×W300mm |
| Feed speed | 1-4m/min |
| Total pressure | 300kN |
COATING APPLICATIONS

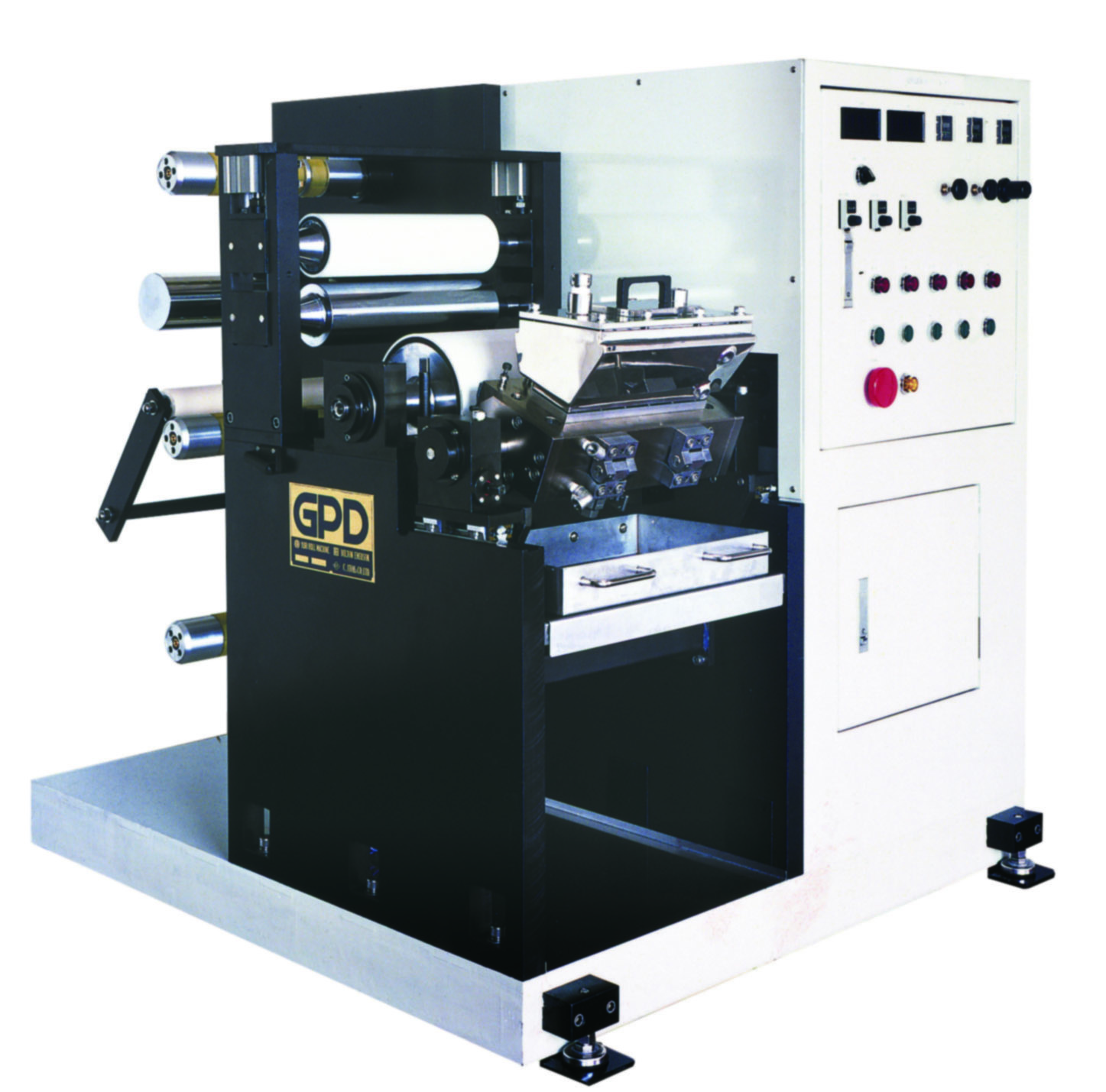

GPD300E
| Coating width | Max 300mm |
| Feed speed | 1-20m/min |
| Heating system | By the heating medium |
