PRODUCTS

COATING MACHINES

We manufacture roller coating machines and die coating machines. Coating machines are used for forming liquid into even surface on the material. Depending on customer’s necessities, we are able to design and manufacture a coating unit or coating line including laminating machines and/or embossing machines.

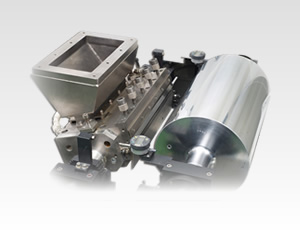

GPD(GEAR PUMP-IN-DIE SYSTEM)

GDP (Gear Pump-in-Die coating system) is an epoch-making system which has solved the existing problems of die coating, such as streak and cleaning.
We have supplied many pharmaceutical-related manufacturers with GDP because of its high-accuracy coating performance.

GPD(GEAR PUMP-IN-DIE SYSTEM)
FEATURES
Deals in wide viscosity range
Die opening mechanism
High-precision constant coating
High-speed coating
Streak prevention system
SPECIFICATION
Maximum speed : 350 m/min
Maximum width : 2,000 mm

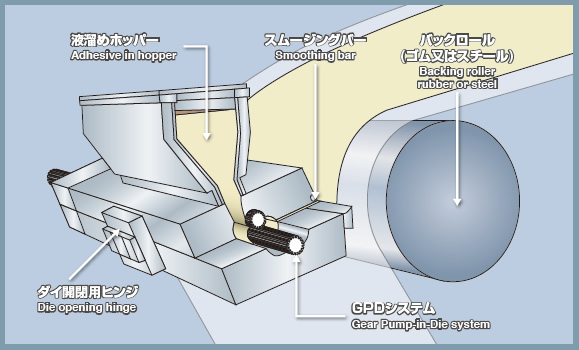

INTERNAL STRUCTURE

INTERNAL STRUCTURE

* Click here to send an inquiry about the machines or to consult the specifications.

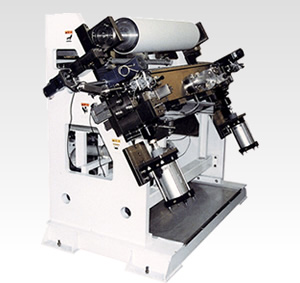

SLITDIE COATING MACHINE

SLITDIE COATING MACHINE
FEATURES
Allows high-accuracy, even coathigs with constant quantity of coating material.
Capable of high-speed coating.
Designed to correct bents in dies.
* Click here to send an inquiry about the machines or to consult the specifications.

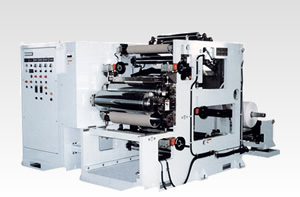

ROLL COATER

ROLL COATER
FEATURES
High-accuracy grinding roll.
Allows high-accuracy, even coatings with constant quantity of coating material.
Applicable to hotmelt.
* Click here to send an inquiry about the machines or to consult the specifications.
Click here for the testing machines for coating applications

We propose the best machine based on your applications and specifications.

Contact us at our main telephone number: +81-46-285-0733 or using the contact form below.
