TESTING ROOM

TESTING ROOM

In our testing room, we have testing machines as follows: a calendering machine, two roller pressing machines, a laminating machine, coating machines including gravure coating and hot melt coating. The calendering machine is able to be changed its rollers, embossing rollers, steel rollers and elastic rollers.
Customers are able to use these fixtures for making sample and conditioning test. We also consider manufacturing methods with customers and propose the optimum machines as customer’s necessities.

CALENDERING, PRESS, AND LAMINATING APPLICATIONS
Ultrasonic wave generating system is equipped in our testing room.

HORIZONTAL MINI CALENDERING MACHINE

HORIZONTAL MINI CALENDERING MACHINE
Material width Max 300mm
Feed speed 0.5-40m/min
Temperature room temperature -150°C
Total pressure 10-80kN(hydraulic pressing), 2-20kN(pneumatics)
Embossing, ultrasonic wave embossing and various calendaring can be used to create prototypes in the testing room.
* Click here for inquiries and consultations about test reservations and the machines.

Ultrasonic wave embossing

The ultrasonic wave embossing is a method with heat fusion for the thermoplastic material by using 20,000 Hz ultrasonic wave which generates frictional heat.
It enables embossing and heat fusion without losing a material surface texture, a density of the material is increased only at the emboss pattern put position.

Ultrasonic wave embossing

HIGH-PRESSURE MACHINE

HIGH-PRESSURE MACHINE
900kN HIGH PRESSURE CALENDER
Roller diameter 500mm
Roller width 400mm
(Effective width:350mm)
Feed speed 2.5-50m/min
Temperature room temperature-120°C
Total pressure 150-700kN
Trimming slitter
400kN HIGH PRESSURE CALENDER
Roller diameter 350mm
Roller width 400mm (Effective width : 350 mm)
Feed speed 1-20m/min
Temperature room temperature -120°C
Total pressure 100-480kN
Resin roller pressing test is available.
* Click here for inquiries and consultations about test reservations and the machines.

HIGH-TEMPERATURE LAMINATING MACHINE

HIGH-TEMPERATURE LAMINATING MACHINE
Roller size D285×W400mm
(Effective width:300mm)
Feed speed 1-14m/min
Temperature room temperature -400°C
Total pressure 20-150kN
* Click here for inquiries and consultations about test reservations and the machines.

COATING APPLICATIONS

GPD350D

GPD350D
Coating width Max 350mm
Material width Max 400mm
Coating temperature Max200°C
Feed speed 1-50m/min
Dryer(1.5mx3zones) with an infrared thickness gauge

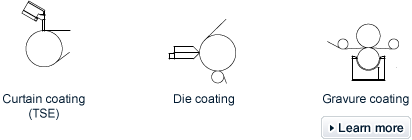

The coating methods illustrated below are available by replacing the coating head. Please contact us for details.

Learn more

* Click here for inquiries and consultations about test reservations and the machines.

GPD340UV

GPD340UV
Coating width Max 340mm
(A slot-die : Max 300mm)
Material width Max 400mm
Coating temperature Max 180°C
Feed speed 1-30m/min
UV irradiator(effective irradiation width 300mm) with an infrared thickness gauge
* Click here for inquiries and consultations about test reservations and the machines.

We propose the best machine based on your applications and specifications.

Contact us at our main telephone number: +81-46-285-0733 or using the contact form below.
